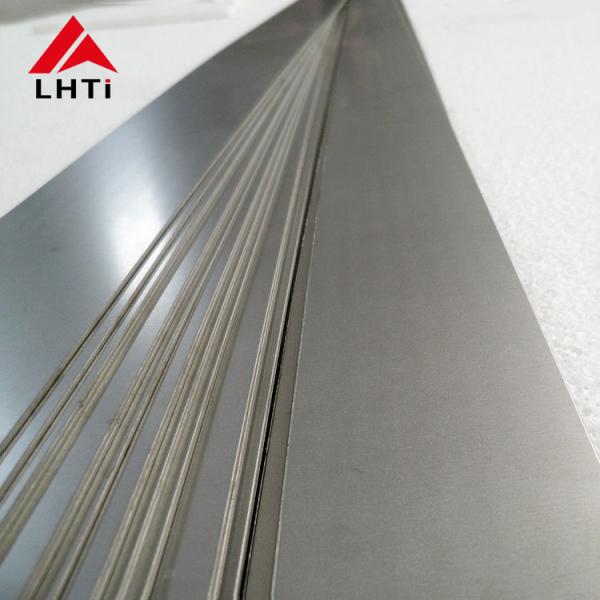

Titanium Sheet Titanium ASTM Grade 3 Sheets

Brand Name : LHTi

Model Number : Titanium Sheet

Certification : ISO9001:2015; TUV; SGS;BV

Place of Origin : China

MOQ : 50 kg

Payment Terms : T/T, MoneyGram, L/C, Western Union

Supply Ability : 200000 kg per month

Delivery Time : 10-28 work days

Packaging Details : Plywood box with soft foam for additional protection

Standard : ASTM B265

Technology : Cold rolled

Shape : square

Surface : Polished, Acid Washing

Contact Now

Titanium Sheet Titanium ASTM Grade 3 Sheets

Titanium ASTM F67 Grade 3 Sheets have good stamping performance, and its welding performance is also good, for all kinds of welding can be carried out, and the welding joint can reach 90% of the strength of the base metal. It is easy to sawing and grinding wheel cutting, achieving excellent machining performance. Also, this sheet has excellent corrosion resistance, able to withstand a long time of use.

Titanium ASTM F67 Grade 3 Sheets can be used for parts under 350℃ with small force and stamping into various complex shapes. For example, steam condensers in thermal power stations, marine seawater corrosion of piping systems, valves, pumps, chemical heat exchanger, pump body, distillation column, seawater desalination system, platinum-plated anode, the plane of the skeleton, skin, engine parts, beams, etc.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
