Brand Name : LHTi
Model Number : Titanium Rod
Certification : ISO9001:2015; TUV; SGS;BV
Place of Origin : China
MOQ : 30 kg
Price : $20.00~$30.00/kg
Payment Terms : T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability : 300000 kg per month
Delivery Time : 10-25 work days
Packaging Details : Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Diameter : 3mm-350mm
Material : Pure titanium
Surface : Bright,Polished,Pickling
Condition : Annealed; M
MOQ : 30 kg
Packing : Standard Export Packing
Grade 6 Ti-5Al-2.5Sn Titanium Rod Titanium alloy bar
Applications
Grade 6 Ti-5Al-2.5Sn alloy is used in the following application areas:
Gas turbine engine casings and rings
Aerospace structural parts, aircraft engine and airframe.
Chemical processing equipment
Grade 6 Ti-5Al-2.5Sn alloy has high service temperature of 480°C (896°F), medium strength, and excellent weldability and fabricability. This alloy has good oxidation resistance and microstructure stability; however it is not heat-treatable.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
|

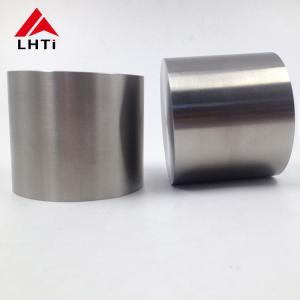

Grade 6 Ti-5Al-2.5Sn Titanium Rod Titanium Alloy Bar with Annealed Treatment Images |
